Pool Screen Safety Inspection Checklist for Homeowners
A pool screen safety inspection checklist is a structured set of criteria homeowners use to verify that their pool enclosure meets safety regulations and prevents accidents. The checklist covers screen mesh integrity, barrier gap measurements, gate hardware function, and frame condition. Standards like the 4-inch sphere test and self-closing gate requirements form the backbone of any thorough safety review. Mr. Pool Screen works with Central Florida homeowners every day to catch the defects that put families at risk and drain budgets when left unaddressed.
Get a Free Estimate or call 407-250-1838
What tools and prep work do you need before inspecting?
Preparation determines whether your inspection goes smoothly or stalls on avoidable issues. Gather a tape measure, a 4-inch diameter sphere or rigid gauge, a notepad or printed checklist, and a camera or phone for photos. These tools cover every physical test an inspector will run.
Before you touch a single panel, pull your local permit records and review your municipality’s specific code amendments. The ISPSC sets a national baseline, but many local rules impose stricter standards, including wind load resistance, alarm requirements, and specific latch designs. Florida counties, for example, often exceed the federal minimums on gate hardware.
Walk the perimeter once before measuring anything. Look for obvious damage: bent frames, torn screen panels, rust stains at fastener points, or sections that have shifted out of plumb. This preliminary visual pass tells you where to spend extra time during the formal assessment.
- Tape measure (at least 6 feet)
- 4-inch rigid sphere or gauge
- Printed inspection checklist
- Camera or smartphone for documentation
- Copy of local pool barrier code or permit conditions
Pro Tip: Download your county’s specific pool barrier ordinance as a PDF before you start. Local amendments override the ISPSC in every jurisdiction, and inspectors cite local code, not the national standard.
1. How to inspect the physical integrity of pool screens and framing
Screen integrity is the foundation of any pool screen safety inspection checklist. A screen that looks intact from a distance can still fail under pressure from a child or a storm gust.
Start your inspection at the connection points where the frame meets the house and where it meets the footing. These junctions hide the most common structural problems, including rust, separation, and water intrusion. Work outward from there, checking every panel systematically.
Look for these specific defects in the mesh and framing:
- Tears and holes larger than 1 inch in any panel, especially near the base where children can push through
- Sagging mesh that has lost tension, which signals UV degradation or broken spline
- Brittleness in the screen fabric, detectable by pressing lightly with a finger. Brittle mesh crumbles rather than flexes.
- Loose or missing fasteners along the frame rails, which allow panels to separate under wind load
- Rust staining on aluminum framing, which indicates moisture penetration and weakening metal
- Coated-over labels or stamped ratings on frame members. Concealed damage is a red flag that a previous repair was done to hide rather than fix a problem.
Cosmetic wear, like surface oxidation or minor screen discoloration, does not compromise safety. Structural defects, like bent frame members, cracked corner connectors, or mesh that pulls free from the spline, require immediate repair.

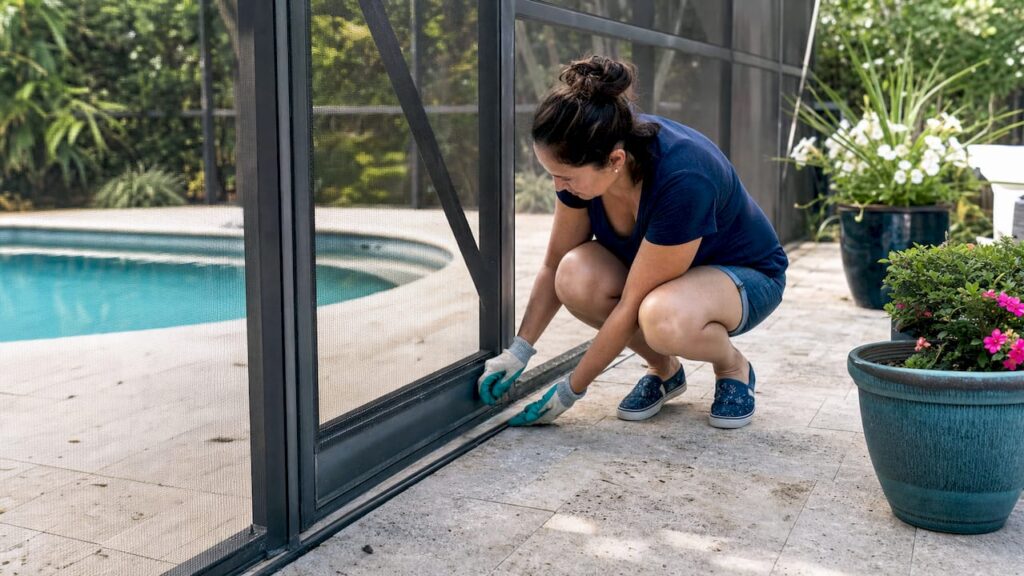

Pro Tip: Run your hand along every spline channel at the base of the enclosure. If the spline pops out easily, the screen is no longer secured and will fail under any real load.
2. What safety barrier gap tests and measurements ensure compliance
Gap measurements determine whether your enclosure actually keeps children out. The 4-inch sphere test is the universal standard: no opening in the barrier should allow a 4-inch diameter sphere to pass through. This rule applies to mesh openings, gaps between the frame and ground, and spaces around gate hardware.
Most local codes also require pool barriers to stand at least 48 inches high with non-climbable surfaces. A non-climbable surface means no horizontal rails, decorative cutouts, or footholds within the lower 45 inches of the enclosure that a child could use to climb over.
| Measurement | Minimum Standard |
|---|---|
| Barrier height | 48 inches from grade |
| Maximum gap (mesh or frame) | Less than 4 inches |
| Ground clearance | Max 2 inches on grass or gravel; max 4 inches on concrete |
| Opening around the latch (exterior side) | Max 0.5 inches |
| Non-climbable zone | Bottom 45 inches of barrier |
Local jurisdictions sometimes set stricter rules than the International Building Code baseline. Always check your county or city code before signing off on any inspection.
Pro Tip: A standard tennis ball measures just under 2.7 inches in diameter. If a tennis ball passes through any gap in your enclosure, that gap fails the 4-inch sphere test with room to spare.

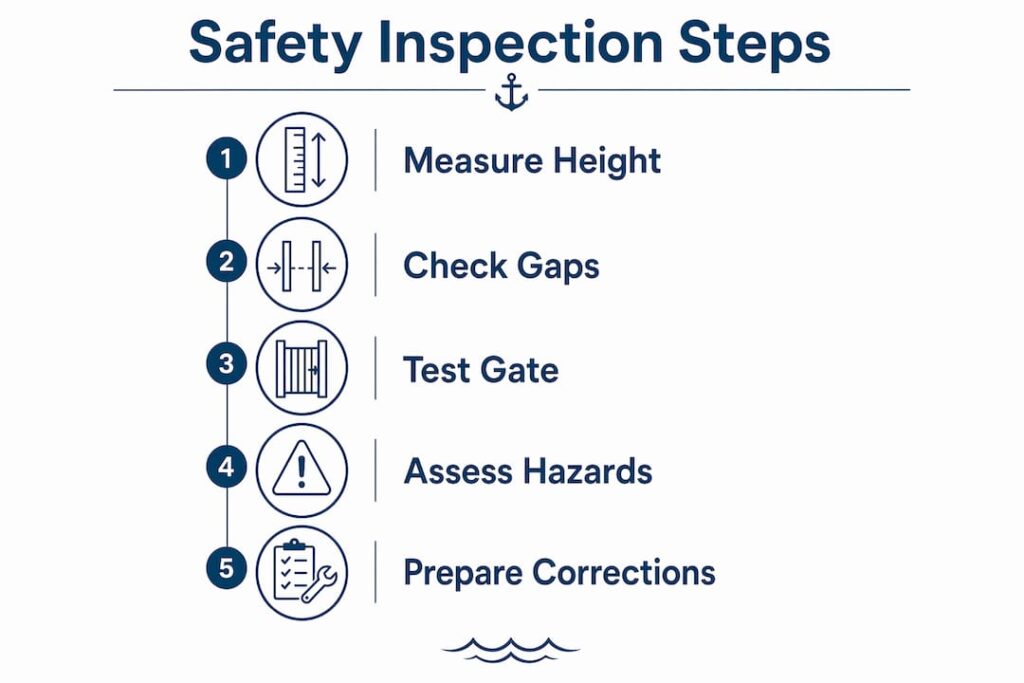

How to perform a step-by-step barrier assessment
The barrier assessment is the core of the inspection process. Work through it in a fixed sequence so nothing gets skipped.
- Walk the full perimeter. Move around the outside of the enclosure and look for any section that is missing, damaged, or visibly out of alignment. Note every problem location before measuring.
- Measure barrier height. Use your tape measure at multiple points, not just one. Height is measured from the exterior ground level to the top of the barrier. Most residential codes require a minimum of 48 inches, but some jurisdictions require 60 inches or more. Public pools require 72-inch barriers under IBC 3109, so confirm which standard applies to your property.
- Run the 4-inch sphere gap test. The 4-inch sphere rule mandates that no opening in the barrier can allow a 4-inch diameter sphere to pass through. Test every vertical slat gap, decorative opening, and panel joint. This rule catches the most common barrier failures.
- Check ground clearance. Slide your gauge along the base of the barrier. On grass or gravel, the maximum allowed gap is 2 inches. On solid surfaces like concrete, ground clearance rules allow up to 4 inches. Record the surface type at each measurement point.
- Inspect barrier connections to the house. The enclosure must form a continuous barrier with no gaps exceeding 4 inches where it meets the building wall or a retaining wall. Filler panels or return sections are the standard fix when gaps exist.
- Document every measurement. Write down the height, gap readings, and ground clearance at each point. Take a photo of any location that fails or comes close to failing.
| Measurement | Code minimum | Common failure |
|---|---|---|
| Barrier height (residential) | 48 inches from exterior ground | Measuring from interior side |
| Gap between vertical slats | Max 4 inches | Decorative openings overlooked |
| Ground clearance (grass/gravel) | Max 2 inches | Soil erosion widening gap over time |
| Ground clearance (concrete) | Max 4 inches | Barrier shifting after settling |
| Connection gap to house wall | Max 4 inches | No filler panel installed |
Pro Tip: Measure barrier height at every corner and at the midpoint of each panel run. Frames sag between posts, and a barrier that passes at the posts can fail in the middle.
3. What to check about gates and door hardware in pool screen enclosures
Gate hardware is the single most commonly failed item in a pool safety inspection guide. A gate that sticks open, latches slowly, or swings inward instead of outward creates a direct path to the pool for unsupervised children.
Gates must be self-closing and self-latching, meaning they return to a closed and locked position without any manual assistance. Test every gate in your enclosure by pushing it fully open and stepping back. It must close and latch on its own within a few seconds.
Check these specific hardware points during your inspection:
- Gate swing direction: The gate must open outward, away from the pool. An inward-swinging gate can be pushed open by a child leaning against it.
- Latch placement: The latch must sit high enough that a child cannot reach it. Many codes require the latch to be at least 54 inches from the ground, or placed on the pool side of the gate.
- Spring tension: Test the closing spring by holding the gate at a 90-degree angle and releasing it. Weak springs that fail to pull the gate shut need immediate replacement.
- Latch alignment: A misaligned latch that catches only partially is not a self-latching gate. It will fail under any real test.
- Frame warping: A warped gate frame prevents proper closure. Check the gap between the gate and the post on all four sides.
Minor adjustments like tightening hinge screws or repositioning a latch strike plate are straightforward homeowner repairs. A gate that warps repeatedly or whose spring fails within months signals a deeper frame or installation problem.
What climbability and adjacent hazards should you look for?
A barrier that meets every measurement standard can still fail if a child can climb over it. Climbability is a formal audit point in most codes, and inspectors check it.
- Look for any horizontal rail, crossbar, or decorative element within the lower 45 inches of the barrier exterior. These act as footholds and make the barrier climbable.
- Remove or relocate any furniture, equipment pads, or planters within 3–4 feet of the outside of the barrier. A chair pushed against the fence gives a child an instant step up.
- Trim tree branches that hang within reach of the barrier top. A branch 3 feet from the fence line is close enough to use as a climbing aid.
- Check above-ground pool ladder security. Above-ground pool ladders must be removable, lockable, or protected by a separate barrier. Any opening left when the ladder is removed is subject to the 4-inch sphere rule.
- Assess every point where the enclosure connects to the house. A gap at a door threshold or a window well can create an access route that bypasses the entire barrier.
Layered safety measures like pool alarms, safety covers, and door exit alarms add meaningful protection beyond what fencing alone provides. Codes recommend these layers because no single barrier is foolproof. You can find more guidance on combining these approaches in a full pool safety checklist.
Pro Tip: Get down to a child’s eye level and look at the barrier from outside. You will spot footholds and gaps that are invisible from adult height.
How to inspect gate operations and mechanisms
Gates fail inspections more often than any other barrier component. Test every function deliberately, not just once.
- Confirm the swing direction. The gate must swing outward, away from the pool. Push it from the pool side. If it swings inward, it fails immediately.
- Test self-closing from multiple angles. Open the gate fully, then release it. It must close without any manual help. Repeat at 90 degrees and at 45 degrees. Gate self-closing failures often appear only at partial angles because friction and wind affect closure differently depending on position.
- Verify self-latching on every close. Watch the latch engage on each closing attempt. One missed engagement is a failure. The latch must catch automatically every time.
- Measure latch release height. On the exterior side of the gate, the latch release must sit at least 54 inches above the ground. This height keeps the release out of reach of young children.
- Check the latch area gap. The opening around the latch mechanism on the exterior side must be no larger than 0.5 inches. A gap larger than that allows a child’s hand to reach through and release the latch.
Common gate failure points to check:
- Hinge corrosion causing the gate to drag and not close fully
- Spring tension too weak to close against wind resistance
- Latch striker plate misaligned so the latch bounces off instead of catching
- Gate frame warped from heat or moisture exposure
Pool gate hardware in corrosive environments like Central Florida deteriorates faster than in dry climates. Stainless steel hardware and regular lubrication extend the service life and reduce inspection failures caused by mechanical wear.
Pro Tip: Test the gate on a windy day if possible. Wind is the most common real-world condition that causes a gate to stall before fully closing. A gate that passes on a calm day may fail in actual use.
4. How environmental exposure impacts pool screen safety
UV radiation and moisture are the two primary forces that degrade pool screens in Florida and other warm climates. UV exposure and storm damage accelerate screen brittleness and corrosion, shortening the safe service life of both the mesh and the aluminum framing.
Routine maintenance slows this deterioration significantly. Follow this sequence after every major storm and at least twice per year:
- Clear debris from the frame channels and gutters. Trapped organic matter holds moisture against the aluminum and accelerates corrosion.
- Inspect all screws and fasteners for rust or loosening. Routine fastener checks catch early corrosion before it spreads to the frame itself.
- Check screen tension across every panel. A screen that sags between fasteners has lost its structural integrity and will tear under wind pressure.
- Rinse the mesh with fresh water after saltwater exposure. Salt accelerates both mesh degradation and aluminum oxidation.
- Examine the frame finish for peeling or chalking. Bare aluminum oxidizes quickly and loses structural strength over time.
Cleaning agents matter too. Bleach-based cleaners degrade screen mesh fibers and should never be used directly on the fabric. A mild soap and low-pressure rinse preserve both the mesh and the frame coating.
5. Which common safety issues arise during pool screen inspections
The most frequently found defects in a safety checklist for pool enclosures fall into four categories: mesh failure, gap violations, gate malfunction, and improper prior repairs.
- Mesh failure includes tears, holes, and brittle panels that no longer meet the 4-inch sphere standard. Left unaddressed, a single torn panel creates a child-accessible opening.
- Gap violations appear most often at the base of the enclosure where the frame meets uneven ground, and around gate frames where hardware has shifted over time.
- Gate malfunction is the most dangerous defect because it is also the most invisible. A gate that appears closed but does not latch provides zero protection.
- Improper prior repairs are a red flag that basic home inspections often miss. Patch jobs using mismatched screen material, wrong-gauge fasteners, or non-rated frame sections create weak points that fail under stress.
Recurring repair needs signal deeper installation or material problems that require comprehensive restoration rather than another patch. Document every defect with photos and dates. This record protects you during resale and helps a professional assess whether restoration or targeted repair is the right call.
When to call a professional: if you find more than two structural defects, any gate that cannot be adjusted to self-close reliably, or evidence of concealed prior damage, a professional inspection is the right next step. Professional pool inspections typically take 1–2 hours and cost $125–$500 depending on scope and location. That cost is a fraction of what ignored defects can cost in liability or full enclosure replacement.
How to prepare for the official inspection and avoid common pitfalls
The week before an official inspection, run through your own checklist one more time. Clear the area around the enclosure so the inspector can walk the full perimeter without obstacles. Double-check every gate function and re-measure any barrier section that was borderline during your self-assessment.
Common reasons inspections fail:
- Barrier height measured from the wrong side (interior instead of exterior ground level)
- Gate latch height below 54 inches because the gate was rehung after repairs
- Gaps at the barrier-to-house connection left open after screen replacement
- Horizontal rails added during a renovation that now create climbability
- Ground clearance that widened due to soil erosion or landscaping changes
Inspectors check three things in sequence: documentation, visual condition, and functional tests. Have your permit records and any prior inspection reports ready. A missing document can delay approval even when the physical barrier passes.
“Noncompliance with pool barrier requirements risks homeowners insurance cancellation. Insurers conduct post-policy inspections and set timelines for corrections before coverage lapses. A failed inspection is not just a code issue. It is a financial one.”
If your enclosure fails, get the correction list in writing and address each item before requesting a re-inspection. Most jurisdictions allow a re-inspection within 30 days. Prioritize gate hardware and height deficiencies first because those are the most common and the most straightforward to fix. For enclosures with weather-related damage affecting barrier integrity, address structural repairs before the re-inspection date.
Key takeaways
A thorough pool screen safety inspection covers mesh integrity, gap measurements, gate hardware, and environmental wear. Skipping any one of these areas leaves a real gap in your family’s protection.
| Point | Details |
|---|---|
| Start at connection points | Inspect where the frame meets the house and footing first, as these hide the most serious defects. |
| Apply the 4-inch sphere test | No gap in the enclosure should allow a 4-inch sphere to pass through; ground clearance and the latch area have tighter limits. |
| Test every gate independently | Each gate must self-close and self-latch without assistance; partial latching provides no real protection. |
| Treat recurring repairs as warnings | Repeated patch jobs signal installation or material failure that requires full restoration, not another quick fix. |
| Document every inspection | Photos and dates protect you during resale and give professionals a baseline for future assessments. |
What I’ve learned from watching homeowners inspect their own pool screens
Most homeowners walk their enclosure once, look for obvious holes, and call it done. That approach misses the defects that actually hurt people.
The gate is the most overlooked component in any screen enclosure safety review. I have seen gates that appeared closed from across the yard but would not latch under any real pressure. A child leaning against that gate would walk straight through. Testing the gate by pushing it fully open and walking away is the single most important step in any inspection, and most homeowners skip it entirely.
The other mistake I see constantly is treating cosmetic wear as the whole story. Homeowners frequently misread surface oxidation as a serious problem while missing the bent corner connector that is actually compromising the frame. Clear inspection criteria, like the ones in this checklist, reduce that error significantly.
My honest recommendation: do a full checklist inspection twice per year, once in the spring before heavy use and once in the fall after storm season. Take photos every time. If you find anything structural, get a professional assessment before the next swim season. Pool inspections reveal expensive defects that untrained eyes miss, and catching them early is always cheaper than dealing with the consequences.
The homeowners who stay ahead of enclosure problems are the ones who treat inspection as a habit, not a reaction to something going wrong.
— Michel
Mr. Pool Screen restores aging enclosures to meet safety standards
Aging pool screens develop the exact defects this checklist covers: brittle mesh, corroded fasteners, warped gates, and frame separation at the connection points. Mr. Pool Screen specializes in pool screen restoration for Central Florida homeowners, using water-based acrylic coatings and stainless steel fasteners to address weathering, rust, and structural deterioration without a full rebuild.
Restoration through Mr. Pool Screen can save homeowners up to 60% compared to full enclosure replacement, while bringing the structure back into compliance with current safety standards. Browse the project gallery to see real restoration outcomes, or get online pricing to understand what your enclosure needs and what it will cost.
FAQ
What is the 4-inch sphere test for pool enclosures?
The 4-inch sphere test requires that no opening in a pool barrier allow a 4-inch diameter sphere to pass through. This standard applies to mesh and frame gaps; ground clearance (2 inches on grass or gravel) and the opening around the latch (0.5 inches) have tighter limits of their own.
How often should homeowners inspect their pool screen enclosure?
A full safety inspection twice per year is the standard recommendation, with additional checks after any major storm. Consistent documentation with photos helps track deterioration over time.
When does a pool screen need professional restoration instead of a patch repair?
Recurring repairs or multiple structural defects found in a single inspection signal that the enclosure needs comprehensive restoration. Patch repairs on failing material create new weak points rather than solving the underlying problem.
What does a professional pool inspection cost?
Professional pool inspections typically cost $125–$500 and take 1–2 hours, depending on the scope and location. That investment identifies hidden defects that basic visual checks miss.
Do pool screen enclosure gates need to open outward?
Yes. Gates must open outward, away from the pool, and must be self-closing and self-latching. An inward-swinging gate or one that does not latch automatically fails standard pool safety requirements.
What is the minimum height for a residential pool barrier?
Most residential codes under the ISPSC require a minimum barrier height of 48 inches, measured from the exterior ground level. Local amendments in some jurisdictions require 60 inches or more, so always verify your county’s specific code.
How do I test if my pool gate passes inspection?
Open the gate fully, then release it and confirm it closes and latches without any manual help. Repeat the test at 90 degrees and 45 degrees open, since friction and wind affect closure at partial angles.
Does my pool enclosure affect my homeowners insurance?
